With the growing demand for high-performance transmission pipelines in industries such as energy, petrochemicals, and infrastructure, ASTM A672 steel pipes have gradually become an essential material in engineering projects. Especially under complex working conditions involving medium to high pressure, low temperatures, or welded structures, choosing the right pipe for the application environment has become a major concern for designers and procurement specialists. As one of the most representative welded steel pipes, ASTM A672 not only offers good mechanical properties and weldability, but also comes in a variety of grades that can be flexibly adapted to different scenarios. Common market grades such as ASTM A672 B60, C65, and Gr.B70 are widely used in power plant pipelines, petrochemical units, and natural gas transportation due to their unique performance characteristics. Therefore, gaining a clear understanding of ASTM A672 performance and applications helps ensure more accurate and efficient material selection at the early stages of a project.
This article, based on real-world market demands and project conditions, will analyze the key properties and application scenarios of different ASTM A672 grades, providing a practical ASTM A672 grade selection guide for engineers and decision-makers!
Overview of ASTM A672 Steel Pipe Grades
ASTM A672 is a standard issued by the American Society for Testing and Materials (ASTM), covering electric-fusion-welded steel pipes intended for high-pressure service and moderate to low-temperature environments. These pipes are commonly used in oil and gas, power generation, chemical processing, and other industries requiring high strength and reliable performance under pressure and temperature variations.
Standard Definition and Structure
ASTM A672 pipes are typically manufactured from pressure vessel quality plates such as ASTM A516. They are formed using electric-fusion welding and then subjected to heat treatment and nondestructive testing to ensure mechanical integrity, toughness, and safe operation.
Within the ASTM A672 standard, “Grade” refers to the strength level of the base material, while “Class” usually indicates factors such as heat treatment condition, manufacturing method, and nondestructive testing requirements. For example, Class 22 refers to a pipe that is normalized and tempered and has undergone 100% ultrasonic testing.
Common Grades and Their Performance Characteristics
ASTM A672 B60
One of the basic grades, made from A516 Gr.60 plate.
Offers lower yield and tensile strength, suitable for medium- to low-pressure conditions.
Commonly used in moderate-temperature and standard-pressure systems.
A cost-effective option when performance demands are not extreme, making it a practical choice in ASTM A672 grade selection.
ASTM A672 C65
Manufactured from A516 Gr.65 material, offering higher strength than B60.
Suitable for environments with slightly higher pressure or fluctuating temperatures.
Often used in medium-pressure boiler piping and heat exchanger systems.
Among the B60 C65 Gr.B70 steel pipe comparison, C65 is often seen as a balanced choice between performance and cost.
ASTM A672 Gr.B70
Made from A516 Gr.70 plate, this is one of the higher-end grades.
Provides enhanced yield and tensile strength, ideal for demanding conditions such as high-pressure boilers, deep well pipelines, or environments with extreme temperature variations.
A preferred option in suitable environment steel pipe selection where strength and reliability are critical.
Performance Comparison of ASTM A672 Steel Pipe Grades
In engineering design and procurement, selecting the appropriate grade of ASTM A672 steel pipe is crucial to ensuring safe operation and cost-effectiveness. Different grades exhibit notable differences in mechanical properties, suitable environments, cost, and weldability. Below is a side-by-side comparison of the commonly used B60, C65, and Gr.B70 grades to help users quickly.
Comparative Analysis:
ASTM A672 B60
Suitable for low-pressure and low-temperature environments, making it a practical choice for cost-sensitive projects. Although its mechanical properties are relatively lower, it is easy to process and weld, making it ideal for stable conditions with high volume use.
ASTM A672 C65
A balanced choice between performance and cost. Compared to B60, C65 offers higher strength and wider adaptability, making it a preferred option in medium-pressure systems, especially where pressure and temperature may fluctuate. Often regarded as a mainstream grade in ASTM A672 performance and application analysis.
ASTM A672 Gr.B70
The highest performing among the three, suitable for demanding environments and critical pipeline sections. With high strength, excellent toughness, and strong pressure capacity, it is ideal for high-pressure vessels, deep well pipelines, and high-temperature transfer systems—frequently the top recommendation for suitable environment steel pipe selection.
Application Scenario Analysis of Different ASTM A672 Steel Pipe Grades
Due to their excellent weldability, controllable strength, and wide temperature adaptability, ASTM A672 steel pipes are widely used across multiple critical industries. However, since each grade offers distinct mechanical properties and stress tolerances, understanding their application scenarios helps ensure more scientific and effective ASTM A672 grade selection.
1. Typical Applications of ASTM A672 B60
Recommended Industries:
Urban water supply systems
Ambient pressure industrial fluid transport
Wastewater recovery and drainage systems
General structural support piping
Environmental Characteristics:
Low or stable ambient temperatures
Non-corrosive or mildly corrosive fluids
Low system pressure (<3.5 MPa)
Budget-sensitive projects
Example Use Cases: In small-to-medium chemical plants, B60 is often used in low-pressure nitrogen or compressed air pipelines. It is also suitable for general utility water pipelines within industrial facilities. As an “economic option” in suitable environment steel pipe selection, it emphasizes cost-efficiency and ease of construction over high performance.
2. Typical Applications of ASTM A672 C65
Recommended Industries:
Medium-pressure steam systems
Chemical and fine chemical production lines
Piping for heat exchanger systems
Secondary steam or condensate networks in power plants
Environmental Characteristics:
Large temperature fluctuations and thermal expansion stress
Fluid media may contain low concentrations of corrosive substances
Moderate system pressure (3.5–7 MPa)
Projects balancing performance and cost
Example Use Cases: C65 pipes are widely used in chemical plants for medium-temperature steam transfer between heat exchangers. With its higher strength margin and excellent weldability, C65 is a “balanced option” frequently chosen in ASTM A672 grade selection guides for medium-duty industrial applications.
3. Typical Applications of ASTM A672 Gr.B70
Recommended Industries:
High-pressure boiler systems
Main steam lines in thermal power plants
Long-distance natural gas pipelines (with station pressure)
Deep well oil & gas reinjection lines
High-temperature heat exchanger or reactor piping
Environmental Characteristics:
Continuous exposure to high temperatures (>350°C) or thermal cycling
High pressure (>7 MPa) with complex media (sulfur, chlorine, etc.)
High safety requirements and minimal risk tolerance
Common in strategic energy infrastructure or long-life-cycle systems
Example Use Cases: In large coal-fired power plants, Gr.B70 is commonly used for main steam pipelines, where temperatures can exceed 500°C and pressures approach 10 MPa. Its superior strength and long-term durability make it the “preferred solution for high-risk environments” and a core example in ASTM A672 performance and application analysis.
How to Select the Appropriate ASTM A672 Steel Pipe Grade Based on Engineering Requirements?
As an electric-fusion-welded pressure pipe product, ASTM A672 is widely used in petrochemical, power generation, and thermal transmission fields. However, when faced with multiple grades such as B60, C65, and Gr.B70, how can engineers make informed selections that match specific project demands in terms of performance, safety, and cost? This section provides a detailed and practical ASTM A672 grade selection guide.
1. Identify Critical Design Parameters
Selecting the right A672 grade starts with defining key service conditions:
1. Design Pressure
Will the system operate under medium to high pressure (≥5 MPa)?
Are there frequent pressure fluctuations or surges?
2. Design Temperature
Is the system exposed to high temperatures (>350°C)?
Is thermal cycling expected? Fatigue resistance must be considered.
3. Fluid Medium
Are the transported fluids corrosive (e.g., H₂S, chlorides, mild acids/bases)?
Are there solids or erosive characteristics?
4. Service Life & Maintenance Access
Is the system in a remote or hard-to-maintain location (e.g., underground, offshore)?
Are long service life and minimal maintenance required?
5. Project Budget & Fabrication Conditions
Are there cost constraints that favor mid-tier materials?
Can the welding and fabrication conditions meet the technical requirements?

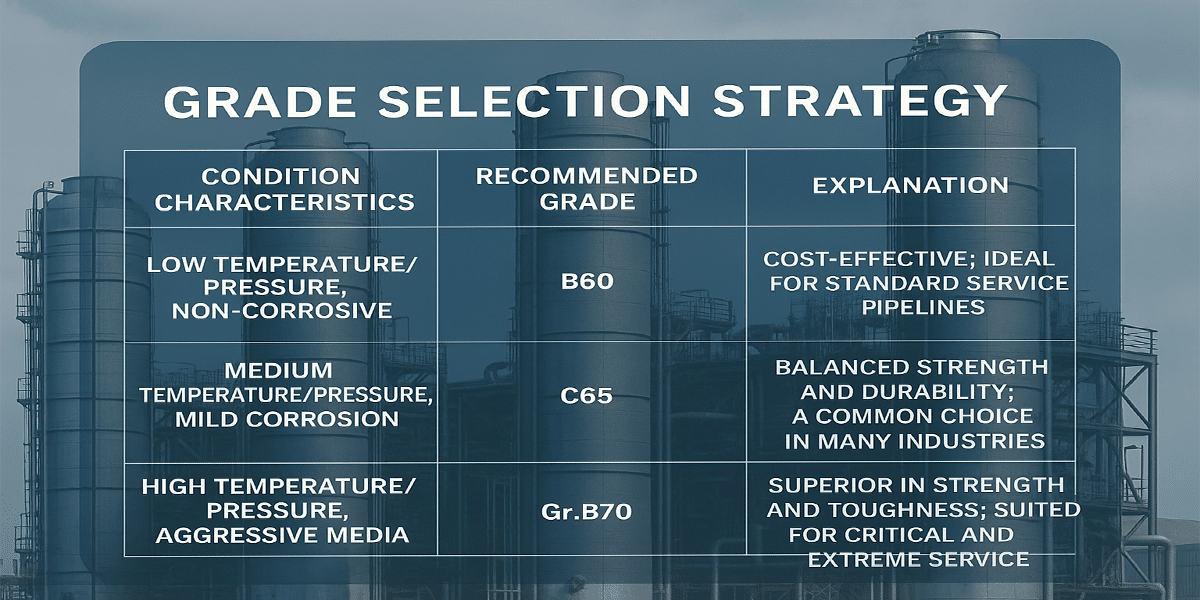

2. Grade Selection Strategy (Suitable Environment Steel Pipe Selection)
3. Industry-Based Application Matching (ASTM A672 Performance and Application)
Power Generation: Gr.B70 is recommended for main steam lines; C65 for secondary condensate return; B60 for general cooling and service water.
Chemical Industry: Use C65 or Gr.B70 for pipelines carrying corrosive fluids or under temperature fluctuations; B60 for non-critical gas or water transfer.
Oil & Gas: Use Gr.B70 for long-distance, high-pressure pipelines; C65 for gathering lines; B60 for water injection or utility services.
4. Common Pitfalls to Avoid
Overengineering: Choosing Gr.B70 for a simple cooling water line leads to unnecessary cost.
Ignoring Weldability: Improper welding can negate the advantages of a higher-grade material.
Focusing Only on Upfront Cost: Long-term O&M and downtime risks may outweigh material savings.
Thanks to their excellent properties and diverse grade options, ASTM A672 steel pipes have become essential materials in industrial transport and structural applications. Through the comparison of B60, C65, and Gr.B70 grades and the analysis of their respective application scenarios, it is clear that only by thoroughly understanding the engineering requirements—and evaluating factors like pressure, temperature, and medium—can one make rational selections that balance safety, stability, and long-term cost control!
Whether aiming for a cost-effective solution or preparing for high-stress operating environments, a scientific A672 grade selection approach is crucial throughout the design and procurement process. As industry standards and application demands continue to evolve, a deeper understanding of ASTM A672 performance and application will help engineers and decision-makers better support projects with stringent performance requirements!
