Inspection Standards and Non-Destructive Testing Methods for ASTM A691 Steel Pipes

In the petroleum, natural gas, power, and chemical industries, high-temperature and high-pressure environments impose extremely stringent safety requirements on pipelines. As a critical standard for electric fusion welded (EFW) alloy steel pipes, ASTM A691 products demand rigorous controls not only in materials and manufacturing processes but also in their inspection systems. For purchasers, understanding the inspection standards and non-destructive testing (NDT) methods of ASTM A691 pipe is key to mitigating quality risks and ensuring project safety.

This article systematically analyzes the testing requirements for ASTM A691 steel pipes from the perspectives of the standard system, testing methods, implementation procedures, and quality control, while demonstrating LONGMA’s professional expertise in quality assurance.

Overview of  the ASTM A691 Inspection Standard System

ASTM A691 applies to electric fusion welded (EFW) alloy steel pipes for high-temperature and high-pressure service. Its inspection requirements cover the following aspects:

• Chemical composition analysis
• Mechanical property testing
• Non-destructive testing (NDT)
• Heat treatment verification

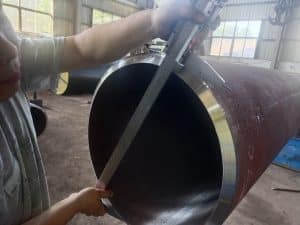

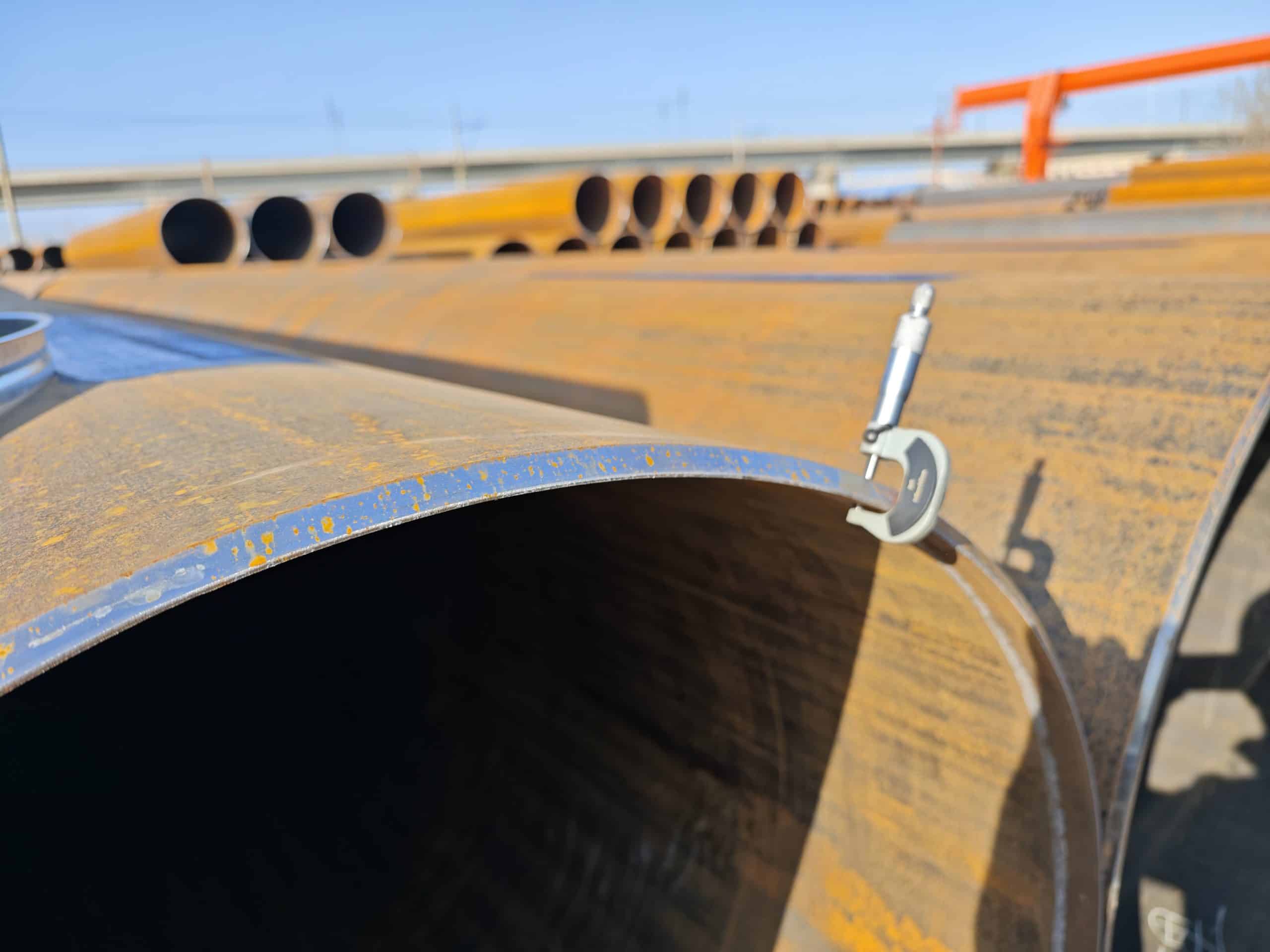

• Visual and dimensional inspection

Notably, high-grade products such as ASTM A691 CL32 are subject to stricter standard requirements, typically mandating 100% non-destructive testing.

Chemical Composition and Mechanical Property Testing

1.Chemical Composition Analysis (ASTM A751)

Purpose: To ensure materials meet specified compositional requirements

Applicable Grades: e.g., ASTM A691 Grade 2.1 4Cr Gr 32

Implementation Steps:

• Sampling from steel pipes or base metal
• Element content analysis using optical emission spectrometry (OES)
• Comparison against standard limits

For ASTM A691 Grade 2.1 4Cr, key elements such as Cr and Mo must be tightly controlled to guarantee high-temperature performance.

2. Mechanical Property Testing (ASTM A370)

All ASTM A691 pipes must meet minimum mechanical property requirements, particularly for high-temperature applications.

Detailed Explanation of Non-Destructive Testing (NDT) Methods

Non-destructive testing is one of the most critical quality control steps in the ASTM A691 standard, with even stricter requirements for the ASTM A691 CL32 grade.

1. Ultrasonic Testing (UT) — ASTM A435 / A578

Purpose: Detect internal flaws (e.g., inclusions, laminations)

Implementation Steps:

• Scan the pipe body with a probe
• Receive reflected wave signals
• Determine flaw location and size

👉 Advantage: Large testing depth, suitable for thick-walled ASTM A691 pipes

2.Radiographic Testing (RT) — ASTM E94 / E1032

Purpose: Detect internal weld flaws (porosity, incomplete penetration)

Implementation Process:

• Irradiate welds with X-rays or γ-rays
• Record flaws via imaging
• Evaluate flaw grades per standards

👉 For export projects (e.g., ASTM A691 pipes & tubes in Spain), 100% RT testing of welds is usually required.

3.Magnetic Particle Testing (MT) — ASTM E709

Purpose: Detect surface and near-surface cracks

Steps:

• Magnetize the workpiece
• Apply magnetic particles
• Observe magnetic particle indications

4. Penetrant Testing (PT) — ASTM E165

Applicable Scope: Non-magnetic materials or precision surface inspection

NDT Method Comparison Tabl

Heat Treatment and Process Verification (ASTM A691)

The ASTM A691 standard mandates post-weld heat treatment:

• Normalizing
• Tempering

Testing Purposes:

• Relieve welding residual stress
• Improve metallurgical structure
• Enhance high-temperature performance

For ASTM A691 Grade 2.1 4Cr Gr 32, heat treatment quality directly affects creep resistance.

Procurement Risks and Quality Control Pain Points

In practical procurement, customers often encounter the following issues:

❗ Incomplete Non-Destructive Testing

Failure to comply with CL32 standards, leading to potential weld defects.

❗ Unreliable Testing Reports

Lack of laboratory data support and non-traceability.

❗ Unstable Material Properties

Non-compliance with strict ASTM A691 standard requirements.

LONGMA’s Quality Assurance System

With over 20 years of experience in steel pipe manufacturing, LONGMA holds a leading edge in the production and testing of ASTM A691 pipes:

1.In-House Internal Laboratory

LONGMA is equipped with a full set of testing equipment:

• Optical emission spectrometer (ASTM A751)
• Universal tensile testing machine (ASTM A370)
• Impact testing machine
• Complete UT / RT / MT NDT equipment

👉 All ASTM A691 CL32 products undergo full-process testing with traceable data.

2. Strict Adherence to International Standards

Strict implementation in accordance with ASTM A691 and related standards ensures every ASTM A691 pipe meets project requirements.

3.Extensive Export Experience

Supplied ASTM A691 pipes & tubes for multiple European projects (e.g., Spain), complying with strict third-party inspection standards (SGS / BV).

4. Full-Process Quality Control

Rigorous control from raw materials → forming → welding → heat treatment → testing.

Conclusion: Testing Determines Quality, Quality Ensures Safety

For high-temperature and high-pressure systems, testing is not only a quality control measure but also the core of safety assurance. Strict compliance with all testing requirements in the ASTM A691 standard effectively prevents material failure and engineering risks.

In particular, high-end materials such as ASTM A691 Grade 2.1 4Cr rely heavily on testing and process control for their performance.
