In the petroleum, natural gas, power generation, and refining industries, the selection of pipeline materials is directly related to the safety, service life, and operating costs of a project. As electric fusion welded (EFW) alloy steel pipes specially designed for high-temperature and high-pressure conditions, ASTM A691 products are widely used in critical engineering projects. However, the differences between various grades often pose challenges for purchasers and engineers. This article systematically explains how to select the appropriate ASTM A691 pipe from the perspectives of material properties, application scenarios, testing standards, and procurement risks, and demonstrates the professional manufacturing capabilities of LONGMA.
Analysis of ASTM A691 Standard and Grade System
ASTM A691 is a standard for electric fusion welded (EFW) alloy steel pipes, usually manufactured from ASTM A387 alloy steel plates as raw materials. Its grade consists of material composition + strength grade + inspection grade.
Common grades include:
- ASTM A691 CL32
- ASTM A691 Grade 2.1 4Cr
- ASTM A691 Grade 2.1 4Cr GR 32
Here, “Class (CL)” represents the non-destructive testing and quality grade. For example, ASTM A691 CL32 typically requires stricter radiographic testing (RT) standards.
Differences in Chemical Composition and Properties of Various Grades
Taking the typical 4Cr series as an example:
| Grade | Main Alloying Elements | Applicable Temperature Range | Features |
| ASTM A691 Grade 2.1 4Cr | Cr + Mo | 450–550°C | Good heat resistance |
| ASTM A691 Grade 2.1 4Cr GR 32 | Strengthened Cr + Mo | 500–600°C | Higher creep resistance |
| ASTM A691 CL32 | Depends on base material | High temperature and high pressure | High inspection grade |
Selection Key Point:
For projects involving long-term high-temperature operation (e.g., power station boilers), ASTM A691 Grade 2.1 4Cr GR 32 is preferred.
Analysis of Key Selection Factors
1.Operating Temperature and Pressure
| Working Condition | Recommended Grade |
| ≤450°C | Standard alloy steel grade |
| 450–550°C | ASTM A691 Grade 2.1 4Cr |
| ≥500°C High Pressure | ASTM A691 Grade 2.1 4Cr GR 32 |
Creep resistance of ASTM A691 pipe is critical in high-temperature environments.
2.Corrosive Environment
In sulfur-containing or high-oxygen environments, grades with higher Cr and Mo contents should be selected to improve oxidation resistance.
3.Inspection Grade Requirements (Class)
| Class | Inspection Requirements | Application Scenarios |
| CL10 | Basic inspection | General industry |
| CL22 | Enhanced inspection | Medium-pressure systems |
| CL32 | 100% RT/UT | High-pressure critical systems |
For export projects (e.g., ASTM A691 pipes & tubes in Spain), ASTM A691 CL32 is usually required.
Key Testing Methods and Implementation Standards
High-quality ASTM A691 products must pass strict tests. The core testing processes are as follows:
1. Chemical Composition Analysis (ASTM A751)
Purpose: Ensure alloying elements meet standards
Steps:
- Sample preparation
- Spectrometric analysis (OES)
- Data comparison with standards
2.Mechanical Property Testing (ASTM A370)
Test Items:
- Tensile strength
- Yield strength
- Elongation
All ASTM A691 pipes must meet minimum strength requirements.
3.Impact Test (ASTM A370 / A673)
Purpose: Verify material toughness
Application: Low-temperature or pressure-fluctuating environments

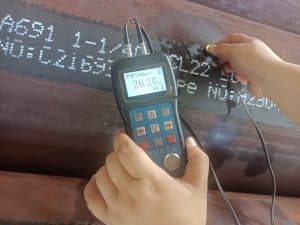

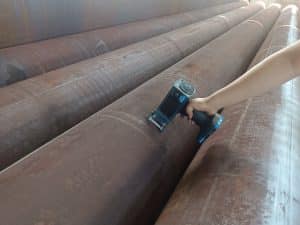

4.Non-Destructive Testing (NDT)
| Method | Standard | Purpose |
| UT | ASTM A435 | Internal defect detection |
| RT | ASTM E94 | Weld integrity |
| MT | ASTM E709 | Surface cracks |
ASTM A691 CL32 usually requires 100% RT testing.
5.Heat Treatment Control (ASTM A691)
Process: Normalizing + Tempering
Purposes:
- Eliminate welding stress
- Optimize metallographic structure
Procurement Risks and Countermeasures
When purchasing ASTM A691 products, focus on the following risks:
❗ Incorrect Grade Selection
Wrong selection of ASTM A691 Grade 2.1 4Cr or higher grades may lead to cost waste or potential safety hazards.
❗ Material Substitution
Some suppliers substitute low-grade materials, which cannot meet high-temperature requirements.
❗ Incomplete Testing
Failure to implement CL32 standard testing affects project acceptance.
Professional Advantages of LONGMA
As a steel pipe manufacturer with over 20 years of experience, LONGMA has significant advantages in the field of ASTM A691 pipe:
✔ In-House Laboratory
LONGMA has established a complete in-house laboratory system, including:
- Spectrometer (compliant with ASTM A751)
- Tensile testing machine (ASTM A370)
- Impact testing equipment
- Full set of NDT testing equipment
All ASTM A691 CL32 products are fully traceable.
✔ Strict Raw Material Control
Adopting ASTM A387 alloy steel plates to ensure stable chemical composition of ASTM A691 Grade 2.1 4Cr GR 32.
✔ International Project Experience
LONGMA has supplied ASTM A691 pipes & tubes in Spain for multiple European projects, meeting strict EN and ASTM standards.
✔ Customized Solutions
Recommending the most suitable ASTM A691 grade according to project working conditions to help customers reduce costs and risks.
Selection Summary
When selecting ASTM A691 pipe, follow these principles:
- Select the appropriate grade based on temperature and pressure
- Prioritize high-temperature performance (e.g., 4Cr series)
- Confirm the inspection grade (e.g., CL32)
- Choose suppliers with laboratory capabilities
Conclusion: Choose the Right Grade to Ensure Project Safety
Correct selection of ASTM A691 grades not only improves system safety but also effectively reduces long-term maintenance costs. Especially in high-temperature and high-pressure environments, high-performance materials such as ASTM A691 Grade 2.1 4Cr GR 32 are indispensable critical choices.
With mature manufacturing experience, a complete in-house laboratory, and a strict quality control system, LONGMA provides highly reliable ASTM A691 pipe solutions for customers worldwide.
