In modern power and boiler systems, high-temperature and high-pressure working conditions impose extremely stringent requirements on material performance. As an electric-fusion-welded (EFW) alloy steel pipe specially designed for high-temperature environments, ASTM A691 has become a key material in power station boilers, main steam pipelines, and high-temperature transportation systems. This article thoroughly analyzes the typical applications of ASTM A691 pipe in the power industry from the perspectives of application scenarios, material properties, design requirements, testing standards, and procurement risks, and demonstrates LONGMA’s professional manufacturing and quality control capabilities.
Core Requirements for Materials in Power and Boiler Systems
Power and boiler systems generally feature the following characteristics:
- Operating temperature: 450–600°C
- High-pressure operation (especially prominent in main steam systems)
- Long-term continuous operation (high requirements for creep resistance)
Under such conditions, ordinary carbon steel cannot meet the requirements, and alloy steels such as ASTM A691 Grade 2.1 4Cr Gr 32 become the preferred choice.
Applications of ASTM A691 in Typical Systems
- Main Steam Pipeline System
The main steam pipeline is the most critical high-temperature pipeline in power stations:
| Parameter | Requirement |
| Temperature | 500–600°C |
| Pressure | High pressure |
| Material | ASTM A691 Grade 2.1 4Cr Gr 32 |
This grade offers excellent creep resistance and serves as the core material for high-temperature systems.
- Reheat Steam System
The reheat system has high requirements for the thermal fatigue resistance of materials:
- Large temperature fluctuations
- Frequent thermal cycles
ASTM A691 Grade 2.1 4Cr demonstrates good stability in such systems.
- High-Temperature Headers and Connecting Pipes of Boilers
Key components in boiler systems include:
- Header connecting pipes
- High-temperature transportation pipelines
ASTM A691 pipe can withstand complex stresses and high-temperature environments.
- Applications in International Projects
For European power station projects (e.g., ASTM A691 pipes & tubes in Spain), the following are usually required:
- Dual ASTM + EN standards
- High-grade testing (CL32)
- Strict certification system
Application Comparison of Different Grades in Power Systems
| Grade | Application Scenario | Advantages |
| ASTM A691 Grade 2.1 4Cr | General high-temperature pipelines | Moderate cost |
| ASTM A691 Grade 2.1 4Cr Gr 32 | Main steam systems | Strong creep resistance |
| ASTM A691 CL32 | High-pressure critical equipment | Strict testing requirements |
Conclusion: Critical systems prioritize the combination of ASTM A691 CL32 + 4Cr Gr.32.
Key Design and Engineering Points
- Creep-Resistant Design
Materials may undergo creep deformation during long-term high-temperature operation:
- Select materials with high Cr/Mo content
- Control working stress levels
- Conduct regular inspections
- Thermal Expansion Control
The following shall be considered in design:
- Installation of expansion joints
- Layout of supports
- Pipeline compensation design
- Welding and Heat Treatment
Standard reference: ASTM A691
- Post-weld heat treatment (PWHT) is mandatory
- Control welding process parameters
For ASTM A691 pipe, welding quality directly affects service life.
Testing Methods and Quality Control Requirements
The power industry has extremely high quality requirements, and strict testing must be implemented.
- Chemical Composition Testing (ASTM A751)
Purpose: Ensure alloy elements meet standards
Particularly critical for ASTM A691 Grade 2.1 4Cr Gr 32.
- Mechanical Property Testing (ASTM A370)
| Item | Requirement |
| Tensile strength | ≥515 MPa |
| Yield strength | ≥310 MPa |
| Elongation | ≥18% |

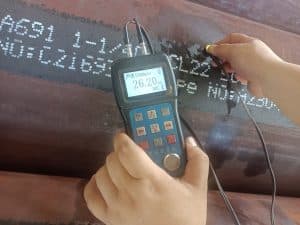

- Non-Destructive Testing (NDT)
| Method | Standard | Purpose |
| UT | ASTM A435 | Internal defect detection |
| RT | ASTM E94 | Weld inspection |
| MT | ASTM E709 | Surface crack detection |
ASTM A691 CL32 usually requires 100% RT testing.
- Heat Treatment Verification
- Normalizing + tempering
- Improve structural stability
Procurement Risks and Industry Pain Points
- Mismatched Material Grades
Using low-grade materials to substitute ASTM A691 Grade 2.1 4Cr Gr 32 poses potential safety hazards.
- Incomplete Testing
Failure to implement the CL32 standard affects project acceptance.
- Non-Standard Welding and Heat Treatment
Leading to failure during high-temperature operation.
LONGMA’s Solutions
With over 20 years of experience as a steel pipe manufacturer, LONGMA has strong strength in the power industry:
✔ In-House Laboratory (Core Advantage)
-
- Spectral analysis (ASTM A751)
- Mechanical testing (ASTM A370)
- Impact test
- Complete UT / RT / MT testing equipment
All ASTM A691 pipes undergo strict testing.
✔ Strict Quality Control System
From raw materials to finished products, ensure every ASTM A691 CL32 product complies with standards.
✔ International Project Experience
Successfully delivered multiple power station projects, including ASTM A691 pipes & tubes in Spain.
✔ Technical Support Capability
Provide selection and design suggestions to help customers reduce risks.
Summary: High-Performance Materials Ensure Power System Safety
In power and boiler systems, material selection directly determines equipment safety and service life. Reasonably selecting ASTM A691 grades and strictly implementing testing and design standards can significantly improve system reliability.
Especially in main steam systems, the combination of ASTM A691 Grade 2.1 4Cr Gr 32 and ASTM A691 CL32 is an ideal solution for high-temperature and high-pressure applications.
