1. Scope and focus:

API 5L: pipeline.
-Steel: including all kinds of steel, such as Gr. X42, X46, X52, X56, X60, X65, X70, X80 and so on.
-purpose: for the construction of pipelines for long-distance transportation of oil, natural gas and water.
Mainly focus on the mid-stream pipeline construction.

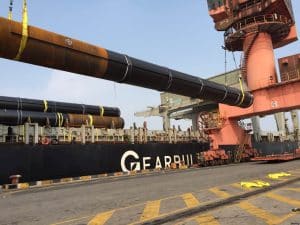

A252 PIPE 1

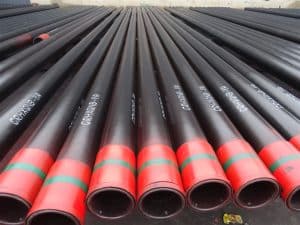

API 5CT: casing and tubing.
-Steel grades: specify J55, K55, N80, L80, C90, T95, p110 and other steel grades.
Application: tailor-made for casing and tubing in the upstream sector of the oil and gas industry.
Meet the needs of oil and gas well construction and completion.


2. Product type:

API 5L: pipeline.
-Type: including seamless steel pipe and welded steel pipe.
-purpose: for the construction of pipelines for the transport of hydrocarbons, providing flexibility for design and construction.

API 5CT: casing and tubing.
Type: including seamless and welded casing and tubing.
-purpose: to meet the requirements of casing and tubing used in oil and gas wells to ensure the stability and integrity of the wellbore.

3. Industry applications:

API 5L: pipeline construction.
-Industry focus: critical for the oil and gas industry, especially in the construction and maintenance of long-distance pipelines.
API 5CT: oil and gas wells.
-Industry focus: mainly serves the upstream sectors of the oil and gas industry to meet the needs of oil well construction and completion.

4. Requirement:
API 5L: mechanical and chemical properties.
Requirements: specify the mechanical and chemical properties of pipelines to ensure that they meet the standards of strength, toughness and corrosion resistance.
API 5CT: good integrity.
Requirements: focus on requirements for keeping casing and tubing in good condition, including specifications for dimensions, materials, mechanical properties and inspection procedures.

5. Grades and categories:
API 5L: graded by strength.
-level: specify a different level (for example, Gr. B, X42, X46, X52, X56, X60, X65, X70, X80) indicate different levels of strength and adaptability to specific use conditions.
API 5Ct: classes and groups.
-categories and groups: casing and tubing are divided into different categories and groups according to factors such as steel grade, heat treatment and thread connection.

6. Corrosion resistance:
API 5L: standard corrosion resistance.
Corrosion focus: provide corrosion resistance suitable for pipeline environment.
API 5CT: enhanced corrosion resistance.
Corrosion focus: emphasis on improving the corrosion resistance of casing and tubing in downhole and wellbore environments.

Although API 5L and API 5CT belong to the API standard family, they serve different purposes in the oil and gas industry.
API 5L mainly solves the construction problems of long-distance transportation pipelines and provides all kinds of steel.
On the other hand, API 5CT focuses on the casing and tubing used in oil and gas wells, emphasizing the well integrity of upstream applications.
The choice between these two specifications depends on the specific requirements of the project and the stage of the oil and gas production process.
